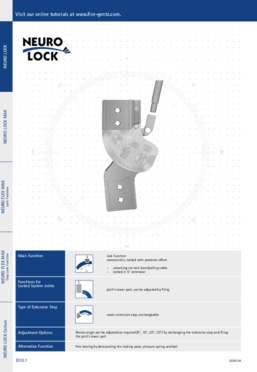

NEURO LOCK
The NEURO LOCK system knee joint is a locked system joint. The patient can unlock it via a lock lever or a pulling cable. It is preassembled at an angle of 5°, corresponding to a physiological knee joint angle. By exchanging the extension stop and filing the lower part of the joint, a locking in different flexion angles can be achieved.
Alternative Function: The NEURO LOCK system knee joint can be converted into a free moving, monocentric system joint with integrated posterior offset by removing locking pawl, pressure spring and ball.
