NEURO SWING System Ankle Joint with plug + go Modularity
The NEURO SWING system ankle joint dynamically brings the patient into an upright position and improves the patient’s stability while walking and standing. In dorsiflexion, the motion control is achieved through an integrated, increased dorsiflexion assist or against the resistance of the anterior spring unit. In plantar flexion, motion control ensures a controlled lowering of the foot and a controlled tibial progression with knee flexion moment during loading response via the posterior spring unit.
The system joint provides a dynamic and adjustable dorsiflexion and plantar flexion stop. The stops are set by the spring units. The orthosis’ alignment is also adjustable. The range of motion and the spring force can be adjusted in dorsiflexion as well as in plantar flexion by exchanging the spring units. The system joint adjustments do not influence each other. Therefore, they can be changed separately and independently.
plug + go Modularity

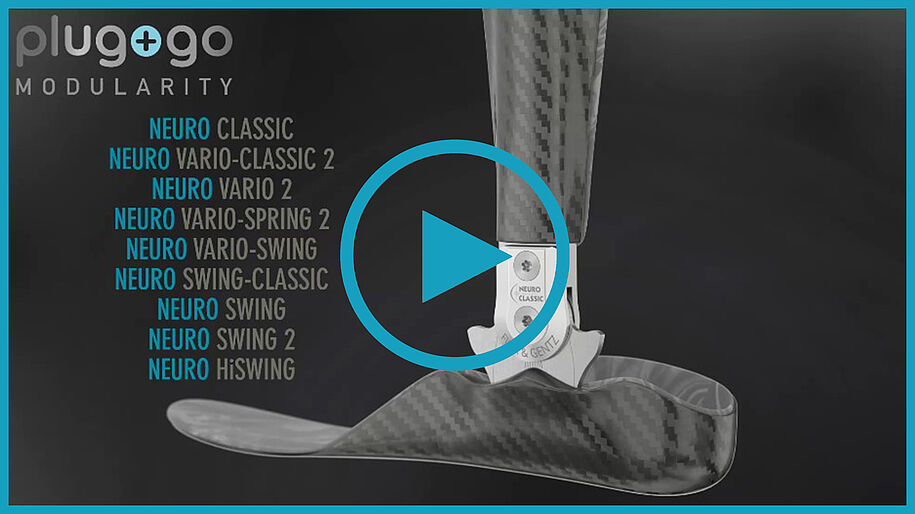

Furthermore, the system joint is equipped with plug + go modularity. This means that it can be converted into any other system ankle joint with plug + go modularity by exchanging the functional unit. For the conversion into the NEURO HiSWING, the spirit level must also be mounted.
Funktional Unit
The functional unit of the NEURO SWING system ankle joint consists of the following functional elements:
- screw unit
- motion limiting screw
- precompressed spring units
Downloads
You can learn more about this topic in our online tutorials:
