KAFO with Carbon System Joints in Anchor Lamination Technique

Mount the system joints by using the assembly/lamination dummies and in accordance with the exploded view drawings. When laminating, the assembly/lamination dummies serve as placeholders for the system joints’ joint cases.

Note: you can find exploded view drawings in our product catalogue System Joints and Articulated System Side Bars.

Mark the lower edge of the assembly/lamination dummy on the system stirrup and the upper edge on the system anchor. Everything above or below this line must not be bent, as these areas are part of the system joint later.

Note: all system anchors for carbon system joints are also available in a bent form that can be used for large distances between the system anchor and the leg in order to prevent falling below the bending radii.

Clamp the system stirrup into a vice with plain jaws to bend it. Pay attention to the marking to avoid a subsequent deformation of the joint area and to be able to bend very close to the joint.

Adapt the system stirrup to the shape of the model. Bend the system stirrup neck with a bending iron. Only bend in one direction.

Note: do not use a hammer and do not heat the material.

Remove the system stirrup from the vice and check the distance between the system stirrup and the model.

Adapt the system stirrup to the shape of the model. Bend the lower part of the system stirrup with a bending iron. Only bend in one direction.
Check the distance to the model.

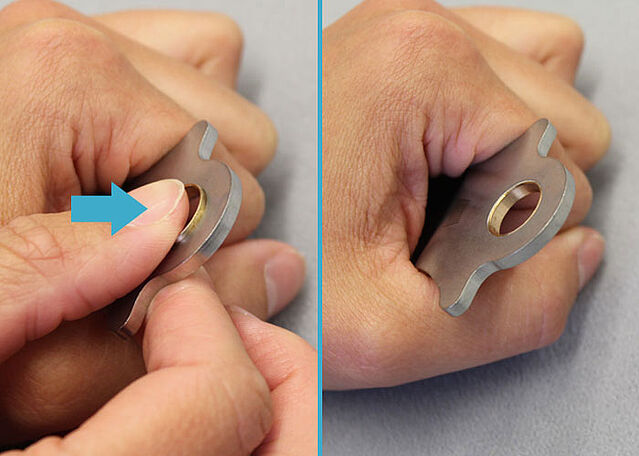

In case the sliding bushing fell out during the bending process, grease it slightly and place it into the bore at the system stirrup again.

Adapt the system stirrup to the shape of the model. Bend the system stirrup foot with a bending iron. Only bend in one direction.
Check the distance to the model.

Clamp the system anchor into a vice with plain jaws to bend it. Pay attention to the marking to avoid a subsequent deformation of this area which is adhered into the joint case later.
While bending, please consider the applicable bending radius and use proper tools (bending iron with round edges).

Note: You will find more detailed information in the Instructions for Use for Qualified Specialists in Orthopaedic Technology System Side Bars and System Anchors for Carbon System Joints.

Check the distance from system anchors and stirrups to the positive cast. Make sure to have enough space left for the reinforcing profile and the reinforcement layers in order to avoid later strains to the laminate. Thus, the joint areas stay parallel.

Grind the system stirrup and the system anchor. Always grind in the direction of rolling. Remove all notches from bending and avoid sharp edges.

Note: system ankle joints with dorsiflexion stop, which can be adjusted by filing, should always be mounted in their preassembled neutral position without changing the dorsiflexion stop.

Use a profile core and produce the system string. Reinforce as usual.
You do not need a shaping dummy.
Important! Please note the processing instructions and the safety data sheet for the epoxy resin and hardener.

Use a sharp knife to remove the thin laminate layer over the assembly/lamination dummies. Remove the screws.

Carefully lever the assembly/lamination dummy of the system ankle joint out of the laminate at the marked spot (arrow). Make sure not to damage the joint areas of the system stirrup in the process. The assembly/lamination dummy of the system knee joint cannot be removed, it remains in the laminate.

Mark the cutting edges by following the previously modified edge of the later orthosis. For optimally integrating the system joint, only remove as much of the laminate as necessary and as little as possible.

Remove all laminate parts which are no longer necessary. Then, you can remove the orthosis parts from the model.

Clean all the joint areas as well as the system stirrup before you temper the orthosis parts. Heat all wax residues with a hot air blower (1) and blow the liquefied insulating wax out of the hollows (2). Remove all residues with a cloth (3). Remove the PVA film tube as well.

Temper all orthosis parts before grinding them. Place the orthosis parts into a cold convection oven and heat it up slowly. When tempered, the orthosis parts are stable and can be worked in the best possible way.
Important! Follow the processing instructions for epoxy resin.

Grind the edges of the orthosis parts (e.g. with a belt grinder). However, it is essential to avoid predetermined breaking points in the metal! Also make sure that the flexible area of the foot piece is even (without brinks).

Note: apply some insulating wax to the aramid fibre edges and subsequently grind them with coarse sandpaper.

In order to remove all possibly caused notches, remove remaining resin residues from the system stirrup with a sharp knife and polish the stirrup subsequently (e.g. with a marbling tool).
Clean all screw drives (e.g. with LOCTITE^® 7063 Super Clean) in order for the screws to be effectively secured later on.

Note: mind the safety data sheet when using the Super Clean LOCTITE^® 7063.

Mount the system joints as described in the respective online tutorials on the joint assembly of the carbon system joints.
In the picture, you can see the component parts of the NEURO SWING Carbon system ankle joint and the NEURO CLASSIC Carbon and NEURO LOCK Carbon system knee joints.
